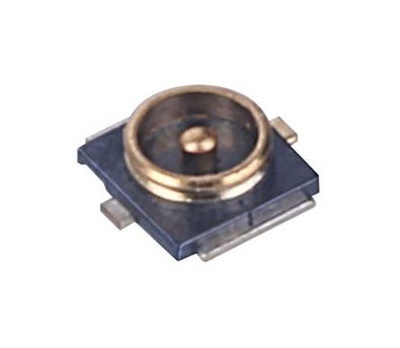

MINI RF And RJ Connectors

• Application
• RF applications, communication modules, IoT devices

• Capacity
• Handles signals up to several GHz frequency

• Color
• Gold and Black

• Components
• Connector body, center pin, housing

• Current Rating
• Up to 1A (depending on model)

• Dimension (L*W*H)
• Approx. 4x4x2 mm

• Features
• Miniature size, Secure connection, SMD mountable, High frequency handling

• Frequency
• DC~6 GHz (typical)

• Function
• Provides a secure RF connection for transmitting high-frequency signals

• Input
• RF Signal

• Interface
• RF Coaxial

• Operating Temperature
• -40C to +85C

• Output
• RF Signal

• Product Type
• Mini RF Connector

• Rated Voltage
• Typically up to 30V

• Response Time
• Instant

• Size
• Miniature

• Thickness
• Approx. 2 mm

• Usage
• Used in RF circuits, antennas, and wireless modules

• Weight
• Approx. 1 gram

• Application
• Ethernet switches, routers, network hubs

• Capacity
• Supports 8 network connections

• Color
• Black with metal frame

• Components
• Plastic, Metal, LED indicators, spring contacts

• Current Rating
• 1.5A max

• Dimension (L*W*H)
• Approx. 98.4mm x 21.7mm x 15.8mm

• Display Type
• Other, LED for Link/Activity status

• Features
• Integrated LEDs, high durability, spring patch, EMI shielded

• Frequency
• Up to 100 MHz (supports Fast Ethernet/Gigabit Ethernet)

• Function
• Network interface connector for Ethernet applications

• IP Rating
• Not rated (Indoor use)

• Input
• Ethernet signal

• Interface
• 8 x RJ45 slots, PCB mount, through hole solder pins

• Operating Temperature
• -40C to +85C

• Output
• Ethernet signal to device

• Product Type
• RJ45 1x8 Modular Jack With LED and Spring Patch

• Rated Voltage
• 125V AC

• Size
• 8-port (1 row of 8 positions)

• Thickness
• Standard PCB mount compatible

• Usage
• PCB mounting for networking equipment

• Weight
• Approx. 24g

• Application
• Communication modules, IoT devices, wireless systems, antennas

• Color
• Gold (gold plated)

• Components
• Contact pin, insulator, metal shield

• Current Rating
• 1 A max.

• Dimension (L*W*H)
• Approx. 4.0 x 4.0 x 1.75 mm

• Features
• Gold plated, SMT mounting, high frequency performance, compact size

• Frequency
• DC to 6 GHz

• Function
• Signal transmission and reception for RF communication

• IP Rating
• Not rated (for indoor use)

• Input
• RF signal

• Interface
• Mini RF I (board mount, SMT)

• Operating Temperature
• -40C to +85C

• Output
• RF signal

• Power Supply
• Not applicable (passive component)

• Product Type
• MINI RF I connector

• Rated Voltage
• 50 V

• Size
• Miniature (surface mount design)

• Supply Voltage
• Not applicable (passive component)

• Thickness
• 1.75 mm

• Usage
• RF communication, PCB and wireless module applications

• Weight
• Approx. 0.5 g

• Application
• Routers, Switches, Hubs, Networking Devices

• Capacity
• 8 contacts

• Color
• Black with Metal Shielding

• Components
• Plastic housing, Metal Shield, Integrated LEDs

• Current Rating
• 1.5A AC/DC

• Dimension (L*W*H)
• 16.4mm x 15.7mm x 13.1mm (approximate)

• Display Type
• Other, Integrated LED Indication

• Features
• Integrated dual LED indicators, Shielded, 90 DIP pin layout

• Function
• Ethernet Network Connector

• Input
• Ethernet cable (RJ45, 8P8C)

• Interface
• RJ45, DIP 90 (Through Hole PCB)

• Operating Temperature
• -40C to +85C

• Output
• PCB Signal Output

• Product Type
• RJ45 Connector with LED

• Rated Voltage
• 125V AC/DC

• Size
• Modular Jack 8P8C

• Supply Voltage
• LED: 2.0V - 2.2V (Typical)

• Usage
• PCB Mount, Networking Equipment

• Weight
• Approx. 6 grams

• Application
• LAN/wired networking, communication devices, network interface cards

• Capacity
• 8P8C (8 positions, 8 contacts)

• Color
• Black with silver shielding

• Components
• Plastic housing, metal shielding, gold-plated contacts

• Current Rating
• 1.5A max

• Dimension (L*W*H)
• Approx. 16 mm x 15 mm x 21 mm

• Features
• Full shielding for EMI protection, back pin design for PCB mounting

• Frequency
• Up to 250 MHz (Category 6 compatible)

• Function
• Network cable interface for data transmission

• Input
• Ethernet cable (RJ45 plug)

• Interface
• RJ45 modular jack, through-hole back pin soldering

• Operating Temperature
• -40C to +85C

• Output
• PCB connection via back pin

• Product Type
• RJ45 Connector

• Rated Voltage
• 125V AC

• Size
• Standard modular jack size

• Thickness
• Full shielding design

• Usage
• Ethernet/network connectivity

• Weight
• Approximately 4-6 grams
