Card Connector

• Application
• Mobile phones, cameras, MP3 players, industrial devices

• Color
• Silver / Metallic

• Components
• Metal shield, plastic body, contact pins

• Current Rating
• 0.5A (typical)

• Dimension (L*W*H)
• Approx 30mm x 27mm x 1.85mm

• Features
• Push-push eject mechanism, SMT mounting, high durability

• Function
• SD Card Slot for Data Reading/Writing

• Input
• SD Memory Card

• Interface
• SD/SDHC card electrical interface

• Operating Temperature
• -25C to +85C

• Output
• Electrical connection to PCB

• Power Supply
• Not applicable (passive component)

• Product Type
• SD Card Push Push Connector

• Rated Voltage
• 50V AC/DC

• Size
• Standard SD card connector size

• Supply Voltage
• 50V maximum

• Thickness
• Approx 1.85 mm

• Usage
• Memory card interface for electronic devices

• Weight
• Approx 2-5g

• Application
• CCTV, DVRs, Access Controls, IoT Security Systems

• Capacity
• Supports up to 128GB (based on SD card)

• Color
• Silver (Metallic)

• Components
• Copper alloy contact pins, metal housing

• Current Rating
• 0.5A max

• Dimension (L*W*H)
• Approx. 15mm x 14mm x 1.4mm

• Features
• Push-push card insertion/ejection, compact size, surface-mount design

• Function
• Micro SD card holder for data storage and retrieval

• IP Rating
• Not sealed, no specific IP rating

• Input
• Micro SD Card (Push-Push mechanism)

• Interface
• Micro SD (Push-Push) 8-Pin Connector

• Operating Temperature
• -25C to +85C

• Output
• Electrical connection to PCB for data transfer

• Power Source
• Passive, powered via PCB

• Power Supply
• Not Applicable (Passive Component)

• Product Type
• Micro SD Card Push-Push Connector

• Rated Voltage
• 3.3V DC

• Response Time
• Mechanical contact, <5 ms

• Size
• Standard micro SD slot size

• Supply Voltage
• 3.3V DC (via micro SD card)

• Thickness
• Approx. 1.4 mm

• Usage
• Storage expansion in electronic security devices

• Weight
• Approx. 1-2 grams

• Application
• Mobile phones, IoT devices, GSM modules, embedded systems

• Capacity
• Single nano SIM card

• Color
• Silver/Black

• Components
• Metal shell and plastic body, Gold plated pins

• Current Rating
• 0.5A

• Dimension (L*W*H)
• 13.6 x 12.3 x 1.2 mm

• Features
• Push-pull eject mechanism, Low profile, Gold-plated contacts for corrosion resistance

• Function
• SIM card connector for nano SIM card interfaces

• Input
• Nano SIM card (6 pin)

• Interface
• 6 Pin contact

• Operating Temperature
• -40C to +85C

• Output
• Direct pin contact to PCB

• Power Source
• Passive (no power required)

• Power Supply
• Not applicable (passive hardware)

• Product Type

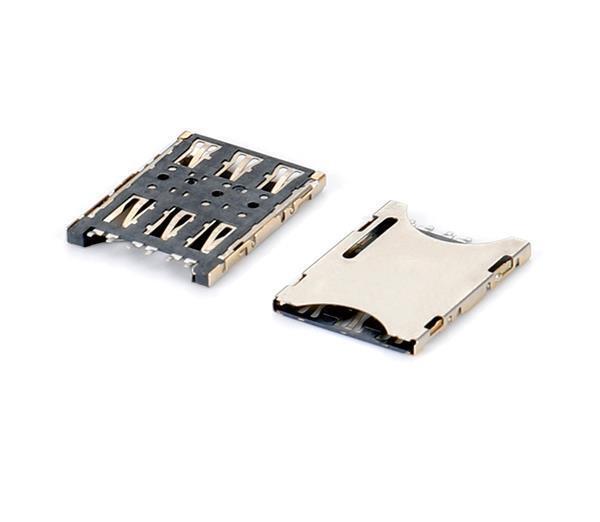

• Nano SIM Card Connector

• Rated Voltage
• 50V AC (Max)

• Size
• Nano SIM size standard

• Supply Voltage
• Not applicable (mechanical interface)

• Thickness
• 1.20 mm (Height H=1.20)

• Usage
• Nano SIM card slot/holder for electronics/communication devices

• Weight
• Approx. 0.6g

• Application
• Mobile phones, IoT devices, wearable electronics, GSM/3G/4G/5G modules

• Capacity
• Supports single SIM card (6P)

• Color
• Silver/Metallic

• Components
• Connector housing, Contact terminals, Metal Shield

• Current Rating
• 0.5A Max per pin

• Dimension (L*W*H)
• Approx. 15mm x 12mm x 1.35mm

• Features
• Push-push mechanism, SMT mounting, Ultra-low profile, Compact design

• Function
• Micro SIM card interface with push-push mechanism

• Input
• Micro SIM card (6P)

• Interface
• 6P SMT (surface mount) for Micro SIM

• Operating Temperature
• -40C to +85C

• Output
• SIM electrical contacts

• Power Supply
• Not applicable (passive component)

• Product Type
• Micro SIM card connector

• Rated Voltage
• 50V AC/DC

• Size
• Standard Micro SIM card size compatibility

• Supply Voltage
• NA (passive device)

• Thickness
• 1.35mm (H=1.35mm)

• Usage
• Micro SIM card slot for electronic devices

• Weight
• Approximately 0.5g (typical)

• Application
• Mobile Phones, Tablets, Smart Devices, IoT Modules

• Capacity
• 1 Nano SIM

• Color
• Metallic Silver and Black

• Components
• 6 contacts

• Current Rating
• 0.5A

• Dimension (L*W*H)
• 12.3mm x 8.8mm x 1.4mm

• Features
• Ultra-thin profile, 6-pin contact, SMT mount, reliable insertion cycle

• Function
• Nano SIM card holder for electronic devices

• Input
• Nano SIM card

• Interface
• Surface Mount (SMT), 6 Pin

• Operating Temperature
• -25C to +85C

• Output
• Electrical contact interface to main PCB

• Power Source
• Passive, no power

• Power Supply
• N/A (Passive component)

• Product Type
• SMT Nano SIM Card Connector

• Rated Voltage
• 50V AC/DC

• Size
• Nano SIM form factor

• Thickness
• 1.4mm

• Usage
• Connect and interface Nano SIM cards in mobile and IoT devices

• Weight
• Approx. 0.3 g

• Application
• Set Top Box, Telecom Equipment, Embedded Systems

• Capacity
• 1 SIM Card (8 Pin)

• Color
• Metallic Silver with Black

• Components
• Stainless Steel Shell, SMT Contacts, Plastic Base, Eject Post

• Current Rating
• 0.5A Max. per contact

• Dimension (L*W*H)
• Approx. 31mm 24mm 2.0mm

• Features
• Card detection switch, secure retention, anti-vibration, easy SIM insertion/extraction, SMT type for automated assembly

• Function
• SIM Card Holder with 8 pins for secure SIM card connection

• IP Rating
• Not Rated (Typically for indoor use)

• Input
• SIM Card via 8 Pin Contacts

• Interface
• 8 Pin SMT, Standard SIM Card Interface

• Operating Temperature
• -25C to +85C

• Output
• Electrical connection to PCB via SMT

• Power Supply
• Not Applicable (Passive Electronic Component)

• Product Type
• SIM Card 8P Holder (Surface Mount Type)

• Rated Voltage
• Maximum 10V DC

• Size
• Standard SIM Slot Size

• Supply Voltage
• Supports Standard SIM Card Voltage (1.8V / 3.0V / 5.0V)

• Thickness
• 2.0 mm (Height)

• Usage
• Mounting SIM Card in Set Top Box or Electronic Devices

• Weight
• Approx. 2-3 grams

• Application
• Mobile communication, data transfer

• Capacity
• Supports 2 SIM cards

• Color
• Black and Silver

• Components
• Metal Spring Contacts, Plastic Housing

• Current Rating
• 0.5A max

• Dimension (L*W*H)
• Approx. 25mm x 18mm x 3.00mm

• Features
• RoHS compliant, compact design, high durability

• Frequency
• N/A (connector only)

• Function
• Dual SIM Card Connectivity

• IP Rating
• No IP Rating

• Input
• 8-pin SIM card interface

• Interface
• 8-Pin (Double Row), SMD Type

• Operating Temperature
• -25C to +85C

• Output
• 8-pin SIM card interface

• Power Supply
• N/A (Passive Component)

• Product Type
• Dual SIM Card Connector

• Rated Voltage
• 50V AC/DC

• Size
• Standard SIM holder size

• Thickness
• 3.00mm

• Usage
• Mobile phones, GSM modules, handheld devices

• Weight
• Approx. 1.2g

• Application
• Smartphone SIM tray circuits, IoT, embedded systems

• Capacity
• Single Nano SIM card

• Color
• Green (PCB), Silver (SIM card holder)

• Components
• Metal contacts, plastic insulator, PCB

• Current Rating
• 0.5A max

• Dimension (L*W*H)
• Approx. 12.3mm x 8.8mm x 2.1mm

• Features
• With post for retention; SMT mounting; precise alignment; durable metal contacts

• Function
• Nano SIM card holder with 6-pin contact, used for secure SIM card interface in electronic devices

• IP Rating
• None (not waterproof)

• Input
• Nano SIM card

• Interface
• Surface Mount Technology (SMT), 6 post SIM interface

• Operating Temperature
• -25C to +85C

• Output
• SIM card connection to device controller

• Product Type
• Nano SIM card connector

• Rated Voltage
• 50V max

• Response Time
• Immediate, mechanical contact

• Size
• Nano SIM card type, compact footprint

• Supply Voltage
• Typically 1.8V / 3V (as per SIM standard)

• Thermal Conductivity
• Standard electronic component, no special rating

• Thickness
• 2.1mm (H=2.1mm)

• Usage
• Smart phones, tablets, and portable communication devices

• Weight
• Approx. 1.2g

• Application
• Smart phones, tablets, wearable electronics, telecom devices

• Capacity
• Single Nano SIM

• Color
• Metallic Grey / Silver

• Components
• 6 Pin Contacts, Metal Cover, SMT pads

• Current Rating
• 0.5A max

• Dimension (L*W*H)
• Approx. 12.3mm x 10mm x 2.1mm

• Features
• Push-push mechanism, low profile, post for enhanced stability, RoHS compliant

• Function
• Nano SIM card socket for secure and reliable SIM card hosting

• IP Rating
• Not rated/IP rating not applicable

• Input
• Nano SIM Card (6 Pin)

• Interface
• 6P SMT (Surface Mount Technology)

• Operating Temperature
• -25C to +85C

• Output
• Electrical contact interface to mobile device

• Product Type
• Nano SIM Card Connector, Surface Mount (SMT) Type

• Rated Voltage
• 50V AC/DC

• Size
• Supports 12.3 x 8.8 mm (Nano SIM size)

• Thickness
• 2.1mm (Height)

• Usage
• Smart phones, handheld devices, consumer electronics

• Weight
• ~0.5g

• Application
• Mobile phones, GSM modules, IoT devices, telecommunication equipment

• Capacity
• Single SIM card support

• Color
• Black with metallic contacts

• Components
• Housing, 6 contacts, push-pull mechanism

• Current Rating
• 0.5A

• Dimension (L*W*H)
• Approx. 19mm x 16mm x 2.5mm

• Features
• Push-pull type, SMD mount, compact, reliable contacts

• Function
• SIM card connectivity, socket for 6-pin SIM cards

• Input
• SIM card signal input

• Interface
• 6-pin

• Operating Temperature
• -25C to +85C

• Output
• SIM card signal output

• Power Supply
• Not applicable (passive component)

• Product Type
• SIM card connector

• Rated Voltage
• 50V AC/DC

• Size
• Standard SIM 2.54mm pitch

• Thickness
• 2.5mm (H=2.5mm)

• Usage
• Used in electronic devices for SIM card interfacing

• Weight
• Approx. 1.5g

• Application
• Surface mount technology (SMT) device for PCB integration

• Capacity
• Single Nano SIM card

• Color
• Silver (Metallic)

• Components
• 6P + CD pin contacts, metal shell, SMT terminals

• Current Rating
• 0.5A

• Dimension (L*W*H)
• Approx. 12.3mm x 10.0mm x 2.1mm

• Features
• Push-push insertion/ejection, Card Detection pin, Compact SMT design, High durability

• Function
• Nano SIM card connection for electronic devices

• Input
• Nano SIM card

• Interface
• 6 pins + Card Detection (CD) pin, SMT

• Operating Temperature
• -25C to +85C

• Output
• Electrical connection of SIM card to device circuitry

• Power Source
• Device powered via PCB

• Product Type
• Nano SIM card connector

• Rated Voltage
• 50V AC/DC

• Size
• Nano SIM standard

• Supply Voltage
• Max 50V AC/DC

• Thickness
• 2.1mm (Height)

• Usage
• Mobile phones, tablets, IoT devices, telecommunication equipment

• Weight
• Approx. 0.8g
