Board To Board Connector

• Application
• Consumer electronics, industrial, automotive, appliances

• Capacity
• 2 pins

• Color
• Black housing

• Components
• Housing, terminals

• Current Rating
• Up to 3A

• Dimension (L*W*H)
• Approx. 12mm x 6mm x 8mm (varies by manufacturer)

• Features
• Right angle, compact design, reliable contacts

• Function
• Wire-to-board electrical connection

• IP Rating
• Not rated (typically for indoor use)

• Input
• 2-pin input interface

• Interface
• Right angle, through-hole/surface mount

• Operating Temperature
• -25C to +85C

• Output
• 2-pin output to PCB

• Product Type
• Wire-to-board connector

• Rated Voltage
• 250V AC/DC

• Size
• 3.0mm pitch

• Supply Voltage
• Up to 250V

• Usage
• PCB connection, signal and power transmission

• Weight
• Approx. 1g

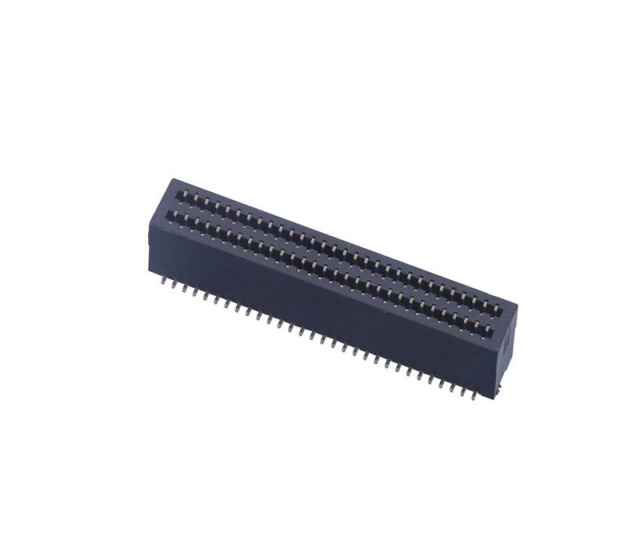

• Application
• Consumer electronics, industrial, communications equipment

• Capacity
• 60 positions (pins)

• Color
• Black (housing), Gold-plated contacts

• Components
• Housing and metal contacts

• Current Rating
• 0.5A per pin

• Dimension (L*W*H)
• Approximately 34mm 7mm 3.2mm

• Features
• High-density, high reliability, compact size

• Function
• Board-to-board electrical connection

• IP Rating
• Not rated for IP protection

• Input
• Signal/Power through PCB

• Interface
• Surface Mount Technology (SMT), double row

• Operating Temperature
• -40C to +85C

• Output
• Signal/Power to PCB

• Product Type
• BTB (Board-to-Board) Connector

• Rated Voltage
• 50V AC/DC

• Size
• 0.80mm pitch

• Supply Voltage
• 50V max.

• Thickness
• Approximately 3.2mm (height varies)

• Usage
• PCB connectivity/interconnection

• Weight
• Approximately 1g (varies by pin count)

• Application
• Electronics, Industrial Automation, Consumer Electronics

• Color
• Black

• Components
• Housing, Contacts

• Current Rating
• 0.5A per Contact

• Dimension (L*W*H)
• Approx. 20.5 x 3.2 x 4.3 mm

• Features
• 0.80mm pitch, double row, surface mount and through hole options, high-density connection, RoHS compliant

• Function
• Board to Board Connector

• Interface
• Through Hole/SMT

• Operating Temperature
• -40C to +85C

• Product Type
• Double Row Board to Board Connector

• Rated Voltage
• 50V AC/DC

• Size
• 0.80mm pitch

• Supply Voltage
• Max 50V

• Thickness
• 0.80mm pitch

• Usage
• PCB Interconnection

• Weight
• Approx. 1g

• Application
• Consumer electronics, industrial, communication equipment

• Capacity
• 40 pins/contacts

• Color
• White/Beige (Insulator)

• Components
• Insulator, Copper Alloy Contacts

• Current Rating
• 0.5A per pin

• Dimension (L*W*H)
• 19.3mm x 3.0mm x 5.7mm (Approx.)

• Features
• Double contact, high density, low profile

• Function
• Board-to-board electrical connection

• Input
• Signal/Electrical Connection

• Interface
• SMD (Surface Mount Device), Board-to-board

• Operating Temperature
• -40C to +85C

• Output
• Signal/Electrical Connection

• Product Type
• Double Connector (Board to Board)

• Rated Voltage
• 50V AC/DC

• Size
• 0.8mm pitch, 40 positions

• Supply Voltage
• 50V maximum

• Thickness
• 0.80mm Pitch

• Usage
• PCB Interconnect

• Weight
• Approx. 0.38g (per piece)

• Application
• Electronics, Communication Equipment, Industrial Automation

• Capacity
• 40 pins

• Color
• Silver/Gray

• Components
• Housing, Contacts

• Current Rating
• 0.5A

• Dimension (L*W*H)
• Varies by Pin Count (Approx. 34mm x 7mm x 10mm)

• Features
• Double row, Surface Mount, High-Density, Secure Connection

• Frequency
• Suitable for High-Speed Applications

• Function
• Board-to-Board Electrical Connection

• Interface
• SMT Board to Board

• Operating Temperature
• -40C to +85C

• Product Type
• Double Connector

• Rated Voltage
• 50V AC/DC

• Size
• Standard as per specification

• Supply Voltage
• Up to 50V

• Thickness
• 0.80mm Pitch

• Usage
• PCB Mounting, Signal Transmission

• Weight
• Approx. 1.2g

• Application
• Consumer Electronics, Industrial, Communications Equipment

• Capacity
• 30 Pins

• Color
• Black

• Components
• Copper Alloy Contacts, Plastic Housing

• Current Rating
• 0.5A

• Features
• Compact, High-Density, Secure Locking

• Function
• Board-to-Board Electrical Connection

• IP Rating
• Not Rated

• Input
• 30 Positions

• Interface
• Surface Mount, SMT

• Operating Temperature
• -40C to +85C

• Output
• 30 Positions

• Product Type
• Board to Board Connector

• Rated Voltage
• 50V AC/DC

• Size
• Compact

• Supply Voltage
• 50V (Max)

• Thickness
• 0.50mm Pitch

• Usage
• PCB Interconnection

• Weight
• Approx. 1g

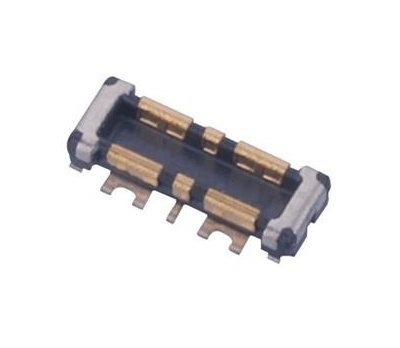

• Application
• Mobile Devices, Communication Equipment, Consumer Electronics

• Capacity
• 6 Contacts

• Color
• Black/Gold

• Components
• Plastic Housing, Copper Alloy Contacts

• Current Rating
• 0.5A AC/DC per pin

• Dimension (L*W*H)
• ~5.8mm x 2.8mm x 2.0mm

• Features
• Low Profile, High Reliability, RoHS Compliant

• Function
• Board-to-Board Electrical Connection

• Input
• 6 Pin Signal Input

• Interface
• Surface Mount

• Operating Temperature
• -40C to +85C

• Output
• 6 Pin Signal Output

• Product Type
• Double Connector

• Rated Voltage
• 50V AC/DC

• Size
• Compact

• Supply Voltage
• Maximum 50V

• Thickness
• 0.80mm Pitch

• Usage
• PCB Mounting for Electronic Devices

• Weight
• Approximately 0.5g

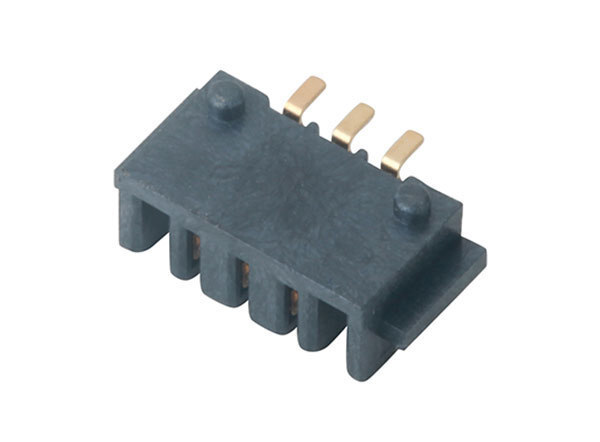

• Application
• Electronic devices, battery packs, PCBs

• Capacity
• NA (connector, not a storage device)

• Charging Voltage
• As per device specifications

• Color
• Black housing with gold-plated contacts

• Components
• Plastic housing, metal contacts

• Current Rating
• Up to 2A (typical)

• Dimension (L*W*H)
• Approx. 8.0mm x 5.0mm x 4.2mm

• Features
• Compact size, SMT mounting, gold-plated contact pins for reliable connection

• Function
• Battery connector for SMT (Surface Mount Technology)

• IP Rating
• Not rated for IP (typical for connectors)

• Input
• 2.0mm pitch, 3-pin input

• Interface
• Surface Mount (SMT), 3 pins

• Operating Temperature
• -25C to +85C

• Output
• Electrical connection for battery circuit

• Power Source
• External battery to device connection

• Power Supply
• DC electronic devices

• Product Type
• SMT Battery Connector

• Rated Voltage
• Up to 125V (depending on application)

• Size
• 2.0mm pitch x 3P x H=4.2mm

• Supply Voltage
• Varies by circuit integration

• Thermal Conductivity
• Standard for non-metallic components

• Thickness
• 4.2mm (Height)

• Usage
• Battery connection in PCB assembly for compact devices

• Weight
• Approx. 0.5g

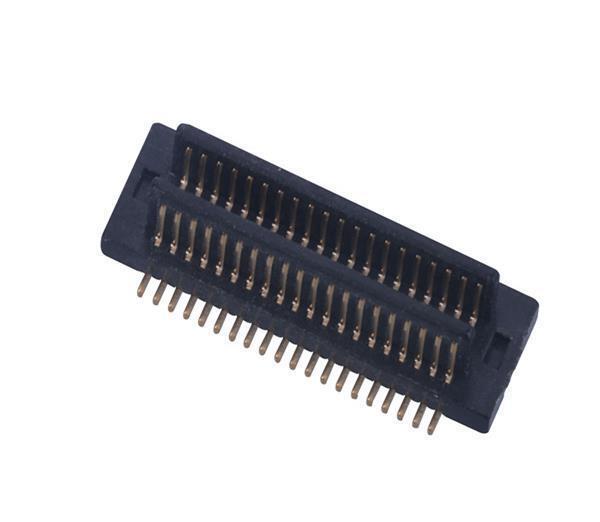

• Application
• Consumer electronics, industrial control, communication devices

• Capacity
• 40 positions

• Color
• Black

• Components
• Housing, contacts

• Current Rating
• 0.5A per contact

• Dimension (L*W*H)
• Approx. 20mm x 5mm x 3mm

• Features
• High reliability, compact design, gold-plated contacts

• Function
• Board-to-board electrical connection

• Input
• Signal and power pins, 0.5mm pitch

• Interface
• Through-hole/PTH

• Operating Temperature
• -40C to +85C

• Output
• Signal and power pins, 0.5mm pitch

• Product Type
• Board-to-Board Connector

• Rated Voltage
• 50V AC/DC

• Size
• 0.50mm pitch; 40 pins

• Supply Voltage
• Up to 50V AC/DC

• Usage
• Used for PCB connections in electronic devices

• Weight
• Approx. 1.5g

• Application
• Consumer electronics, mobile devices, automotive, industrial equipment

• Color
• Black and Gold

• Components
• Copper alloy (contacts), thermoplastic (housing)

• Current Rating
• 0.5A

• Features
• Double contact points, reliable connection, compact pitch

• Function
• Board-to-board connection in electronic devices

• Interface
• SMD (Surface Mount Device)

• Operating Temperature
• -40C to +85C

• Product Type
• Double Connector (Receptacle / Socket)

• Rated Voltage
• 50V AC/DC

• Size
• 0.80mm pitch

• Thickness
• 0.80mm pitch

• Usage
• Signal and low-power transmission

• Weight
• Approx. 0.05g

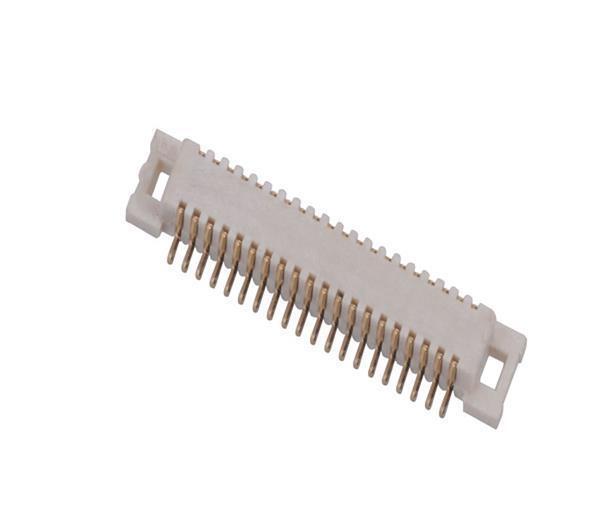

• Application
• Consumer electronics, telecom, industrial automation, instrumentation

• Color
• Beige/Gold

• Components
• Contact pins, plastic housing

• Current Rating
• 0.5A per contact

• Dimension (L*W*H)
• Depends on pin number, typical: 19.45mm x 3.2mm x 2.0mm (for 40 pins)

• Features
• High density, reliable connection, low profile

• Function
• Board-to-board electrical connection

• Interface
• Surface Mount (SMT)

• Operating Temperature
• -40C to +85C

• Product Type
• Board-to-Board Connector

• Rated Voltage
• 50V AC/DC

• Size
• 0.50mm pitch

• Usage
• PCB electronic equipment, embedded devices

• Weight
• Approx. 1g (varies by pin count)
